Saillogger is a fully automated and maintenance-free marine log book and monitoring solution built by boaters for boaters. It was created in 2019 by a lazy sailor who wanted to capture their memories while sailing from San Francisco to Mexico but knew they would not be diligent enough to capture every nook cranny along the California coast.
Saillogger automatically logs the details of your trips. These include track, speed, distance, wind speed, etc. Each trip is automatically detected and logged without requiring you take any action like starting or stopping a trip. It builds and maintains a digital memory for you and your boat.
At the end of each trip, a new log entry is automatically created, marking start and destination moorages. The time you spent at moorages will also be logged under Stays (e.g. Stayed 3 days in Eagle Harbor at anchor). You may need to manually categorize your stay as at anchor, mooring buoy or dock. If you choose to do so, that is the only manual thing to do, it is completely optional. And if you classify a stay, Saillogger will remember it the next time you visit the same moorage.
Saillogger aggregates information about your trips and provides you statistics including the number of trips, moorages you have been to, countries you have visited, longest passages, time you spent at anchor, mooring buoys etc. The easiest may be to look at the statistics of one of our founders as an example.
Saillogger also creates an automatic timelapse for all of your trips, animating the movements of your boat on a map. See a timelapse example here for a multi-week sail along the California coast between San Francisco and Ensenada.
A monitoring function allows you to see your boat's status while you are away from the boat and have a peace of mind. You can also configure e-mail and push notifications to your phone.
Your information stays private unless you explicitly decide to make it available publicly. If you choose to do so, your friends, family and others can access your statistics, log book entries, timelapse or monitoring information. You can configure each individually, for example you can make your timelapse public but keep everything else private if you wish.
There are multiple ways to use Saillogger but our recommended approach is to use a Victron Cerbo GX that is integrated with your boat network with a NMEA 2000 cable. Victron provides the perfect platform that can act as a central hub for monitoring and controlling various devices on your boat. Saillogger runs on this platform. About the price point, required hardware will cost you roughly $300 in the United States. You can purchase them on Amazon.com (see Cerbo-S GX and the cable) or through your preferred local marine server provider.
The next thing is you need is an Internet connection. Starlink on your boat, marina wifi when you get back to your slip or occasional hotspot connections to your phone are more than adequate. Saillogger can run without an Internet connection for months, possibly years.
Follow the instructions on Setting up Cerbo GX and Automated Trip Logging via Saillogger to setup Saillogger, create a free account and configure it on Cerbo GX.
That's it, then sit back, relax, and cruise around. Let Saillogger manage your log book and capture your memories for you while you are enjoying cocktails with your family and friends.
Advanced Users: There are additional ways to use Saillogger if you are an advanced, technically oriented user. Saillogger runs on an open platform called Signal K. If you already use Signal K on your boat, you can start using Saillogger by just downloading the plugin.
Customized Platform: If you want to follow a more geeky path and build your own platform with customizations, our recommended option is to use a Raspberry Pi with a PiCAN-M HAT and its purpose built case. PiCAN-M HAT is an awesome module for Raspberry Pi and can be used to power it from NMEA 2000 without requiring an additional power supply. Detailed instructions on running Signal K on a Raspberry Pi with PiCAN-M can be found on SeaBits.
Marine Vendors: If you are a marine vendor developing a monitoring device that supports Signal K, please contact us and we will be happy to list your product here.
Saillogger is currently free to use and has been free since its inception in 2019. We build, use and love our own product and make it available to others at no cost. At some point in the future, there may be a subscription fee to cover maintenance and cloud costs. If and when subscription fees are introduced, existing users will be grandfathered with some free subscription period. You can always download all your information from Saillogger, if you decide not to continue to use the service. We don't use or sell your data, if you decide to cancel your subscription, all your data will be deleted.
You do not need constant Internet connection from your boat for trip logging. Saillogger caches data locally. So if you connect to the Internet occasionally (every few weeks is more than enough) when you are at a marina or dock, that is sufficient.
We have users who use Saillogger from remote destinations, where there is no Internet. Their trips gets processed whenever they get to a place where they can connect to the Internet for a few hours. While we haven't tested explicitly, there is no reason for Saillogger to not work even if you don't connect to the Internet for a year. The bigger risk will be losing locally cached data due to a crash or hardware failure.
However, remote monitoring is near-realtime and you need an Internet connection to use it. Trip logging will continue to work even if you do not have an Internet connection but you will not be able to monitor your boat remotely.
Important Note: Seeing information on the monitoring page does not necessarily mean your monitoring device is able to send the required data for trip logging. These are different enough that while the monitoring page is working as expected, new trips may not be logged. This section explains probable causes and ways to troubleshoot.
First of all, ensure that you have waited long enough after your trip has completed. It will normally take about an hour after you complete a trip for a log to show up. During this time, your monitoring device needs to be up and connected to the Internet. If it is not, no worries, your log still will show up as soon as you bring your monitoring device up and it connects to the Internet the next time.
If you have waited enough, ensured your monitoring device is on and it is connected to the Internet several hours after completing a trip, you may need to investigate more. Your monitoring device is probably not sending position information to the cloud. There can be several reasons for this but before proceeding further, simply restart the Signal K server. If the problem is due to some crashed process, this should fix it.
If problem persists, the next likely reason is that you may have specified an incorrect GPS source in your plugin confirmation. To be sure, remove if there is anything there. It is for advanced use cases and only needed in rare scenarios, plugin should work without an explicitly specified GPS source. Remove the GPS source and restart Signal K server.
To verify, go to Signal K Dashboard and look for the status for Saillogger plugin. It will say something like "1 entry in the queue, last connection to the server was 17 minutes ago". There are few things to verify here:
1 entry in the queue, last connection to the server was 17 minutes ago
Another way to verify that the monitoring device is sending data to the cloud is via your boat page on Saillogger.com, which provides some useful information. Status field should give you a good idea on what might be happening. If it is not enough, click on the Collector ID on that page, you will see additional important details.
If none of these help, you need to go a bit deeper. Before you do that, re-verify everything above as the issue is most likedly covered there. If you are sure it is not, next step is to enable plugin debugging and checking Signal K server log for any anomolies reported by the plugin. If you have gone this far, you may try contacting as at [email protected], but we can only offer limited support on a best effort basis so your best option is to do as much self troubleshooting as possible. If you contact us, please provide very detailed information, including your debug logs.
Saillogger takes information from your boat network and only supports the readings that are available, specifically:
Make sure you have readings for your battery available in SignalK. To confirm this, go to the admin page of your Signal K server and choose Data Browser. Choose self as context and entry batteries in the search field. You should see several readings like electrical.batteries.XXXX.voltage, electrical.batteries.XXXX.capacity.stateOfCharge.
Enter the value you see in XXXX to your Saillogger plugin, in Main Battery key for monitoring field. For example, if you see electrical.batteries.1234.voltage in the browser, you should only enter 1234 in the plugin configuration.
Main Battery key for monitoring
Notes attached to TrackPoints do show up in Timelapse allowing you to create stories for your travels. See an example here.

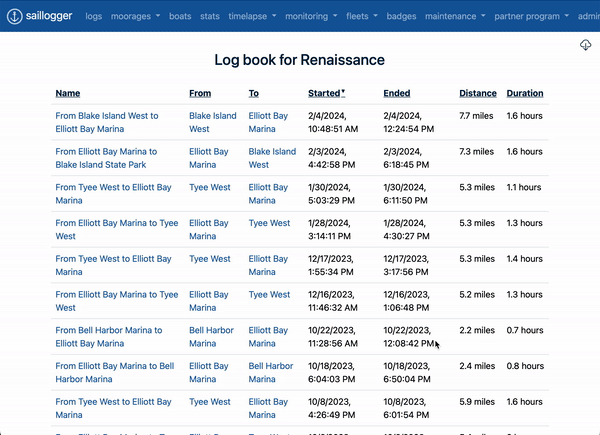

In order to add a note, open a existing log and click on one of the TrackPoints (boat icons in the map), a popup will appear allowing you to add a note. Save it and when go to Timelapse, you will see that note as your boat passes through the TrackPoint.
Important Note: Specifying a GPS source is an advanced option and should be avoided unless absolutely necessary. It can become useful when you have an erratic GPS source on the network that you want to ignore.
If your logs have random tracking points that are tens, hundreds or even thousands of miles from the overall track, that normally means there is a GPS source that occasionally sends position reports that are wrong and Saillogger captures them. This can easily mess up your logs and can cause zig zagged tracks. In such a scenario, you can limit the GPS source to a single reliable GPS source. Doing so can be tricky and a misconfiguration can cause your trips not to be logged at all, so caution is required.
If you are convinced you need to specify a GPS source, follow these steps:
signalk-saillogger Skipping position from GPS resource PiCAN-M.130
You likely have a GPS source on your network that is unreliable. Make sure you have consistent readings from your GPS and ensure you have a GPS antenna that has an unobstructed view of the sky.
If the problem still persists, consider limiting GPS readings to a single reliable source, which is explained in question 9.
